Products

Waterless Ink

What is Waterless Printing ?

The Waterless printing is a printing method in which the traditional dampening is avoided in order to print the image of the printing plate and the waterless plate is used in which the non-image area is treated with a layer of silicone rubber. In conventional damping (offset) printing, a large amount of wastewater is generated due to the use of water (dampening) during printing, and various harmful substances are contained. In Waterless printing with no use water, it avoids the use of harmful substances such as alcohol, protects the health of workers, and enables environmentally friendly printing.

Product Range for Waterless Ink

Sheetfed ink Heatset ink Coldset ink
ECOLON Waterless SPECTRUM Waterless WEB STAR Waterless
ECOLON UV Waterless

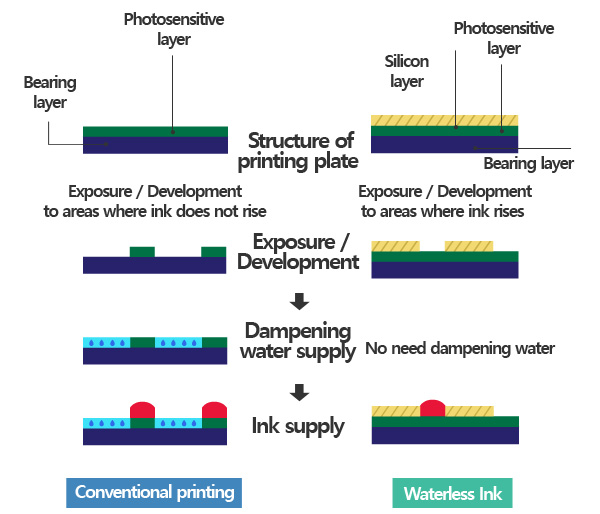

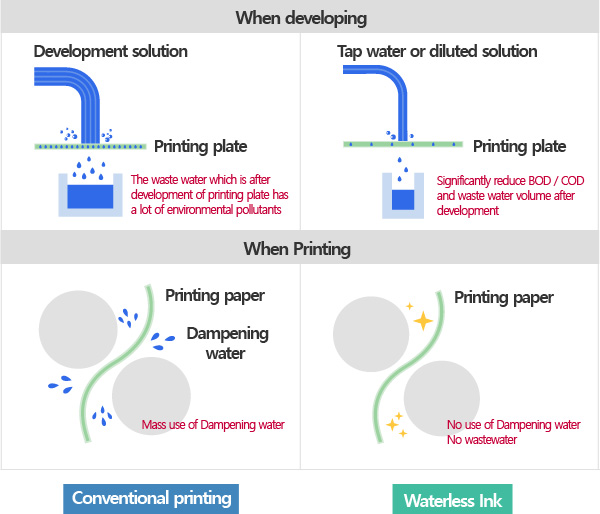

Comparison with Conventional Offset / Waterless Offset Printing

Features of Waterless Ink

  • ① Reduction of environmental hazard by unused dampening water, health protection of workers
  • ② No need to adjust the balance of ink and dampening water
  • ③ Better dot reproducibility
  • ④ Reduced dry down after printing, due to no dampening water

Printing condition for Waterless printing

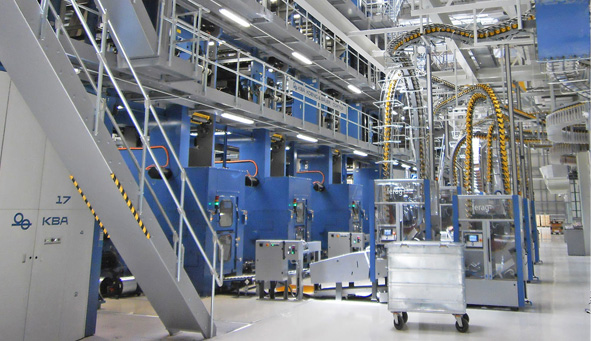

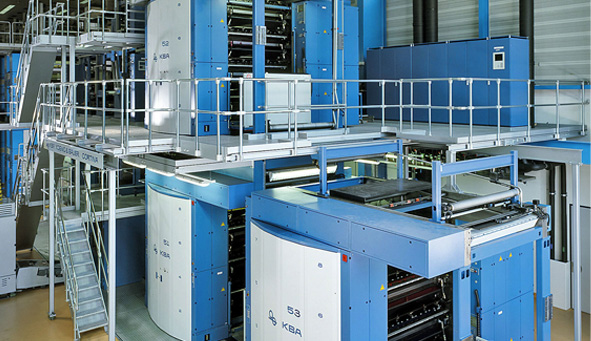

  • ① Conventional offset press + Chiller Cooling Facility Or exclusive waterless printing press ( ex, KBA Cortina )
  • ② Using Waterless plate
  • ※ Available to convert from the conventional press to waterless printing

Sheetfed Waterless

Product name Color Type C.T.I Packing
ECOLON Waterless YELLOW H type
N type
S type
23 ~ 35 1 kg tin
1 kg / 2.5kg vacuum
MAGENTA
CYAN
BLACK
Product name Color Type C.T.I Packing
ECOLON UV Waterless YELLOW H type
N type
S type
23 ~ 34 1 kg tin
1 kg / 2.5kg vacuum
MAGENTA
CYAN
BLACK

CTI Critical Tonning Index H Hard N Normal S Soft

오른쪽으로 스크롤하시면 표를 더 보실 수 있습니다.

Heatset Waterless

Product name Color Type C.T.I Packing
SPECTRUM Waterless YELLOW N type
S type
SS type
23 ~ 37 1 kg tin
1 kg / 2.5kg vacuum
MAGENTA
CYAN
BLACK

오른쪽으로 스크롤하시면 표를 더 보실 수 있습니다.

Coldset Waterless

Product name Color Usage C.T.I Packing
WEB STAR Waterless YELLOW KBA Cortina 용 23 ~ 30 1 kg tin
1 kg / 2.5kg vacuum
MAGENTA
CYAN
BLACK

오른쪽으로 스크롤하시면 표를 더 보실 수 있습니다.
